White paper

Embedded NoSQL database — one engine, one `.nvx` file, many hosts

This paper describes the core engine, on-disk architecture, security model, performance contract, how platform libraries are produced, the desktop and editor tools, and the 1.x roadmap. Companion pages hold the byte-level and API inventories: format.md, architecture.md, bindings.md, Integration/README.md, query.md, benchmarks.md, explorer.md.

NuvexaDB is an embedded NoSQL database for applications that need collections, NQL (Nuvexa Query Language), optional AES-256-GCM encryption, and a single portable file (.nvx). It is not a network server. One process holds an exclusive lock on a path. Concurrent reads on that handle are allowed; writes stay exclusive.

There is one managed engine. .NET and .NET MAUI call it directly. Java, Kotlin, Swift, Flutter, React Native, Python, Node.js, Go, and C++ load a Native AOT build of the same engine through a C ABI (nuvexa.h, ABI v2). A file written from Kotlin is the same file Nuvexa Data Studio, a MAUI app, and a Swift host open. Compatibility is a compile of one codebase, not a format treaty between language ports.

NuvexaDB is a standalone product. It ships its own engine, C ABI, language SDKs, Data Studio, CLI, and editor extensions. Hosts compose it with whatever else they already use; that is outside this paper.

Supporting: Nuventra.NuvexaDB.Tools (session + disposable explorer grid cache). The engine never embeds another database; the .nvx file is the store.

flowchart TB
  subgraph hosts [Host apps]
    Maui[".NET / MAUI"]
    Jvm["Java / Kotlin"]
    Swift["Swift"]
    Flutter["Flutter / Dart"]
    Rn["React Native"]
    Py["Python"]
    Node["Node.js"]
    Go["Go"]
    Cpp["C++"]
    Studio["Data Studio / CLI / IDE"]
  end

  subgraph sdk [Thin SDKs]
    Nuget["NuGet Nuventra.NuvexaDB"]
    Jna["JVM JNA"]
    Spm["Swift"]
    Ffi["Flutter dart:ffi"]
    Koffi["React Native + Node"]
    Ctypes["Python ctypes"]
    Cgo["Go cgo"]
    Hpp["C++ nuvexa.hpp"]
    Tools["Tools / ExplorerSession"]
  end

  subgraph native [Shared native surface]
    Header["nuvexa.h ABI v2"]
    Lib["nuvexa.dylib / .so / .dll"]
  end

  subgraph core [Single engine]
    Abi["NuvexaAbi + UnmanagedCallersOnly"]
    Engine["Pages / WAL / B+tree / NQL / AES-GCM"]
    File["app.nvx"]
  end

  Maui --> Nuget
  Jvm --> Jna
  Swift --> Spm
  Flutter --> Ffi
  Rn --> Koffi
  Py --> Ctypes
  Node --> Koffi
  Go --> Cgo
  Cpp --> Hpp
  Studio --> Tools
  Nuget --> Engine
  Tools --> Engine
  Jna --> Header
  Spm --> Header
  Ffi --> Header
  Koffi --> Header
  Ctypes --> Header
  Cgo --> Header
  Hpp --> Header
  Header --> Lib
  Lib --> Abi
  Abi --> Engine
  Engine --> File

The engine is pure managed C#. It does not embed SQLite or RocksDB. Storage, WAL, BSON, NQL, Argon2id, and AES-256-GCM exist only in Nuventra.NuvexaDB. Other languages do not reimplement the file.

Rejected alternatives for non-.NET hosts:

PublishAot=true and NativeLib=Shared produce nuvexa.dylib / libnuvexa.so / nuvexa.dll. The native project keeps JsonSerializerIsReflectionEnabledByDefault so NQL and index JSON survive trim. That switch must stay on.

Mental model for tools and hosts: collection = table, document = JSON row, field = column. _id is always the primary key. Declared types live in the hidden collection __nuvexa_schema (hidden from the Data Studio tree and from user-facing stats).

On disk, new data-page payloads are BSON. Public APIs stay JSON (NuvexaDocument.Parse / ToJson, NQL, Explorer, C ABI). A payload that looks like {…} is treated as legacy UTF-8 JSON. Mixed BSON/JSON files are valid. Existing 1.0.0 files remain readable.

Documents larger than one page are chained. Maximum document size is 16 MiB. Collection names are at most 120 bytes.

Physical page size is 8192 bytes. Encrypted pages lose 28 bytes to a random nonce and GCM tag, leaving 8164 bytes of logical payload. Page 0 is the superblock (never page-encrypted). The catalog lives on page id 1. Allocatable pages start at id 2.

Each allocated page (except the superblock) is a slotted buffer:

Slots grow from the header; the slot directory grows backward from the end of the logical page. Page header fields include type, item count, CRC32 of the logical page, page id, LSN, next-page (overflow / chain), and right sibling (B+tree).

Companion file: <path>.nvx-wal, magic NVXW.

Replay applies page records up to the last valid commit, then truncates after a successful checkpoint. Encrypted checkpoints write the same DEK HMAC on WAL copies of page 0. Legacy all-zero MAC records still replay.

Crash contract (enforced in CI by tests/Nuventra.NuvexaDB.CrashHarness): a committed insert survives Environment.FailFast.

Secondary indexes are B+trees. Keys are UTF-8 with a type prefix, a NUL, and the document id:

Compound indexes join field paths and value prefixes with U+001F (EnsureIndexAsync(["city", "status"])).

IXSCAN covers:

• Equality (single-field or compound prefix)
• String ranges
• Compound equality on the indexed prefix

On format v2 files, numeric $gte / $lte use bounded IXSCAN (d: keys). v1 files still walk the n: G17 index and apply the real compare. explain() reports ID, IXSCAN, COLLSCAN, AGGREGATE, UPDATE, or DELETE.

Indexed find does not materialize the whole secondary index before skip / limit. Equality and string ranges use B+tree lo / hi (prefix inclusive, successor exclusive). Without sort, skip / limit apply while scanning. With sort on a non-index field, matches are collected then sorted.

• One process, one path. FileShare.None. A second Open / Create on the same path throws.
• One writer, concurrent readers on an open handle. Page cache and file I/O are locked.
• `BeginTransactionAsync` checkpoints first so abort can restore the last durable snapshot.
• `await using` without `CommitAsync` rolls back (implicit commit was removed). Callers that already CommitAsync are unchanged.
• `CompactAsync` streams documents in 256-row batches, preserves encryption, swaps the file in place, and keeps the handle open.
• `BackupAsync` checkpoints and copies through the open stream (it does not File.Copy a locked file). `RestoreAsync` / nuvexa restore replace the file.

$lookup refuses a foreign collection larger than LookupMaxDocuments (default 100 000; 0 disables the cap). Limits are public on NuvexaLimits.

NQL is the shared query language for Data Studio, NuvexaDatabase.ExecuteAsync, nuvexa query, and nuvexa_execute.

db.<collection>.find({ ... }).sort({ field: 1 }).skip(n).limit(n).page(p, size).project({ field: 1 })
db.<collection>.aggregate([ ... ])
db.<collection>.update({ ... }, { $set: { ... } })
db.<collection>.delete({ ... })

Unquoted JS keys are accepted (age: { $gte: 21 } → valid JSON). .page(2, 200) is the same as .skip(200).limit(200).

| Find operators | $eq $ne $gt $gte $lt $lte $in $nin $and $or $exists $regex | | Updates | $set $unset $inc $push $pull (NQL update / library UpdateAsync) | | Aggregate stages | $match $project $sort $skip $limit $count $group $lookup | | $group accumulators | $sum $min $max $avg $first |

Aggregation runs in memory after a collection scan. Do not $lookup into a multi-million-row foreign collection.

.NET only: fluent NuvexaFilter, typed GetCollection<T>(), and LINQ via an AOT-safe expression visitor (ExpressionFilter) — not IQueryable. Language SDKs must not grow a second query parser; they pass NQL and document JSON through.

Files: db.Files.UploadAsync / DownloadAsync store chunks in fs.files / fs.chunks. ABI v2 exposes path-based GridFS (nuvexa_fs_upload / download / metadata), not raw byte buffers.

Canonical header: src/Nuventra.NuvexaDB.Native/include/nuvexa.h. nuvexa_abi_version() returns 2.

• In-process handle (intptr_t). The SDK does not hold its own file descriptor.
• JSON in, JSON out. nuvexa_execute returns a JSON array.
• No exceptions across the boundary. Status: 0 ok, 1 error, 2 encryption, 3 integrity, 4 not found.
• cdecl, UTF-8. Null key means unencrypted create / open (encrypted open then returns NUVEXA_ENCRYPTION).
• Free every char* with nuvexa_free.

v2 adds catalog, count, stats, backup / compact / restore, rekey, transactions, and path-based GridFS. LINQ and fluent Find stay on the .NET API.

Golden NQL cases live in tests/interop/cases.json. Every native / SDK pack job runs those cases (or abi_runner.c) before it uploads. If a host disagrees on expected names, the bug is in that SDK’s marshalling, not a second query engine.

A .nvx file is one portable embedded database. Creates and writes always use format 2 (order-preserving numeric d: keys and a 32-byte WAL header that records page size). Format 1 is deprecated and still opens. Language bindings treat the file as opaque.

Page 0 is never AES-GCM page-encrypted. Encrypted files HMAC-SHA256 the first 400 bytes with the DEK (32-byte MAC at offset 400). Superblock CRC32 covers those 400 bytes (CRC at offset 198; the CRC field is zeroed while computing).

Byte-level page layout: format.md.

NuvexaDB protects data at rest on one device. It is a local process over one file. It does not listen on the network and does not register remote users. The threat is a stolen or copied .nvx (and, for encrypted files, a guessed passphrase). Integrity checks refuse a tampered file; the engine does not repair it.

An encrypted file never opens without the correct key. Missing or wrong key throws NuvexaEncryptionException (C ABI NUVEXA_ENCRYPTION). The library does not create, overwrite, or partially open the file. NuvexaDatabase.IsEncrypted / nuvexa_is_encrypted reads the superblock flag without the key so an IDE can prompt first.

A tampered or corrupt file throws NuvexaIntegrityException (C ABI NUVEXA_INTEGRITY) and is not opened. Data Studio, Visual Studio, and VS Code / Cursor surface that as an alert (they do not rewrite the file).

1. Passphrase — UTF-8, supplied by the host. Never stored in the .nvx, in source, or in Data Studio recent-file / query-history JSON.
2. KEK — Argon2id, 32 bytes. Memory, iterations, parallelism, and a 16-byte salt live in the superblock.

• Memory: 8–256 MiB (app Create() default 16 MiB, mobile-safe; Explorer / CLI ForDesktop uses 64 MiB)
• Iterations: 1–16 (default 3)
• Parallelism: 1–8 (default 2)
• Existing files keep the KDF parameters stored at create time.

1. DEK — 32 random bytes. Wraps the page cipher. Wrapped with AES-256-GCM under the KEK; AAD is the 16-byte file id.
2. Verifier — plaintext NVEXA-OK-VERIFY! encrypted with the KEK (same AAD). Wrong passphrase fails here before pages are touched.

ChangeEncryptionKey / nuvexa_change_encryption_key re-wraps the existing DEK. Pages are not rewritten.

The host supplies the passphrase. Data Studio does not write it to the OS keychain (see roadmap). Weak demo keys (1234) are a passphrase problem, not a leaked product secret.

Every allocated page except the superblock:

AAD is file id (16 bytes) + page id (int64 LE). A tag mismatch is fail-closed.

Open path:

1. Read page 0. Reject missing NVX1, bad CRC, or unsupported version / page size.
2. If encrypted and the key is missing or empty → NuvexaEncryptionException.
3. Derive KEK, verify the verifier, unwrap the DEK.
4. Verify HMAC when it is not all zeros.
5. Replay WAL. Optionally scan allocated pages (CRC32; AES-GCM when encrypted).

NuvexaOpenOptions.VerifyIntegrity defaults to true. Full page scan is skipped when the file is larger than IntegrityScanMaxBytes (default 64 MiB; 0 always scans). Superblock checks still run. A bad page still fails when it is first read.

Bindings must not implement Argon2 or AES. They pass the passphrase into nuvexa_create / nuvexa_open.

NuvexaDB is an embedded page store, not a client/server cluster. Performance is measured against SQLite (Microsoft.Data.Sqlite) and LiteDB on the same machine, plus frozen SLOs in CI.

Create a secondary index (EnsureIndexAsync) for the fields you filter on. Indexed equality + early limit is the intended “first page of a large collection” path (Data Studio browse is 200 rows).

dotnet run --project benches/Nuventra.NuvexaDB.Benchmarks -c Release -- --gate

--crore writes 10 million documents (~/Downloads/nuvexa-1crore.nvx). It can take hours and several GB. --scale N is the smaller local run.

Measured on the author’s machine (13 September 2026), 1 000 customers:

An earlier 1-crore run: write ~5.5 min. Compound city+status+age limit 50 was a 38 s collection scan before the find-path change. Re-run --crore without --force to measure IXSCAN on that file.

Encryption cost is dominated by Argon2id at open / create, then per-page AES-GCM. Cache-hot point gets stay inside the +30% SLO versus plaintext.

The on-disk format, KDF, and NQL must be identical everywhere. The only portable way to guarantee that is one source tree compiled to:

1. Managed IL for .NET / MAUI / Data Studio / CLI / VS / VS Code (ExplorerSession → engine).
2. Native AOT shared libraries for every other language, one RID (Runtime Identifier) per OS/CPU.

src/Nuventra.NuvexaDB          (engine)
        │
        ▼
src/Nuventra.NuvexaDB.Native   (nuvexa_* exports)
        │
        ▼
publish.sh  -r <rid>           (one native binary per RID)
        │
        ├─ osx-arm64 / nuvexa.dylib     Apple Silicon
        ├─ osx-x64   / nuvexa.dylib     Intel Mac
        ├─ win-x64   / nuvexa.dll
        ├─ win-arm64 / nuvexa.dll
        ├─ linux-x64 / libnuvexa.so
        ├─ linux-arm64 / libnuvexa.so
        └─ linux-bionic-arm64 / libnuvexa.so   → Android AAR jniLibs

Unix consumers also look for libnuvexa.*. The publish script symlinks nuvexa.dylib → libnuvexa.dylib when Native AOT omits the lib prefix.

A Kotlin host on Apple Silicon must not load the Intel dylib. That is why CI does not ship a single “universal” blob for every language: each job publishes the library that the runner can link and test.

Desktop and server RIDs ship from native CI runners that can link and test that ABI. Mobile follows the ABI the OS can actually load.

In short: official CI today is Apple Silicon Mac, Intel Mac, Windows x64, Windows ARM (windows-11-arm → nuvexa.dll + Data Studio MSI), Linux x64, Linux ARM (ubuntu-24.04-arm → libnuvexa.so + .deb / .rpm), Android (linux-bionic-arm64), and iOS (Nuvexa.xcframework). Language SDK packs still run on x64 / Apple Silicon hosts and load the matching native artifact.

Each SDK only:

• Loads the RID-matched library (JNA, dart:ffi, Swift module map, koffi, ctypes, cgo, nuvexa.hpp).
• Marshals UTF-8 JSON and maps status 2 / 3 to encryption / integrity errors.
• Runs tests/interop/cases.json.

They must not parse pages, implement Argon2, or invent a second query language. A .nvx is compatible because the same engine wrote it.

Host-specific only: loader (NUVEXA_NATIVE_LIB / NUVEXA_NATIVE_DIR / jniLibs / DynamicLibrary.process() on iOS) and whether the public API is sync (Dart, Kotlin, Swift) or async (React Native, to match NativeModules).

Every shippable surface shares <Version> / <PackageVersion> in Directory.Build.props. After a bump:

python3 .github/scripts/check-versions.py --repo-root . --write

That copies the same number onto NuGet metadata, Java, Android (versionName + versionCode = major×10000 + minor×100 + patch; 1.0.6 → 10006), Python, Node, React Native, Flutter, Go, C++, Swift, Data Studio installers, VS Code, and Visual Studio. CI fails if any of those drift. Sample apps are not bumped.

Logic:

1. Everyday engineering must not overwrite the public Releases page.
2. A red tag run must not publish a half-built product (success() on publish-release).
3. Tag and main on the same SHA share a concurrency group (${{ github.workflow }}-${{ github.sha }}). The tag run wins; the duplicate main run is cancelled.
4. If a published (non-draft) Release v<Version> already exists, CI stops after version alignment. Bump Directory.Build.props to start a new build.
5. publish-release downloads every NuvexaDB-* artifact, zips each folder (stage-release-assets.sh), and gh release create with --verify-tag.

nuget.org, GitHub Packages, Maven, npm, pub.dev, PyPI, and Swift Package publish stay commented out until multi-host publishing is decided. Do not dotnet nuget push (or the equivalent) from a clone.

Language SDK jobs wait for the matching NuvexaDB-Native-<rid> artifact, run that SDK’s interop suite, then pack. Android AAR and React Native modules run the golden fixtures before they assemble.

All tools open one .nvx. They share ExplorerSession (browse filter, 200-row pager, query examples, explain, collection captions). They are not a second engine.

Avalonia 11 desktop workbench. Self-contained publish per RID.

macOS notes: the .pkg is unsigned / ad-hoc signed today and always installs to /Applications. Single-file publish is disabled on osx-* so Avalonia/Skia dylibs sit beside the host inside Contents/MacOS (single-file + extracted natives breaks the .app + ad-hoc sign). Windows and Linux use a compressed single-file host.

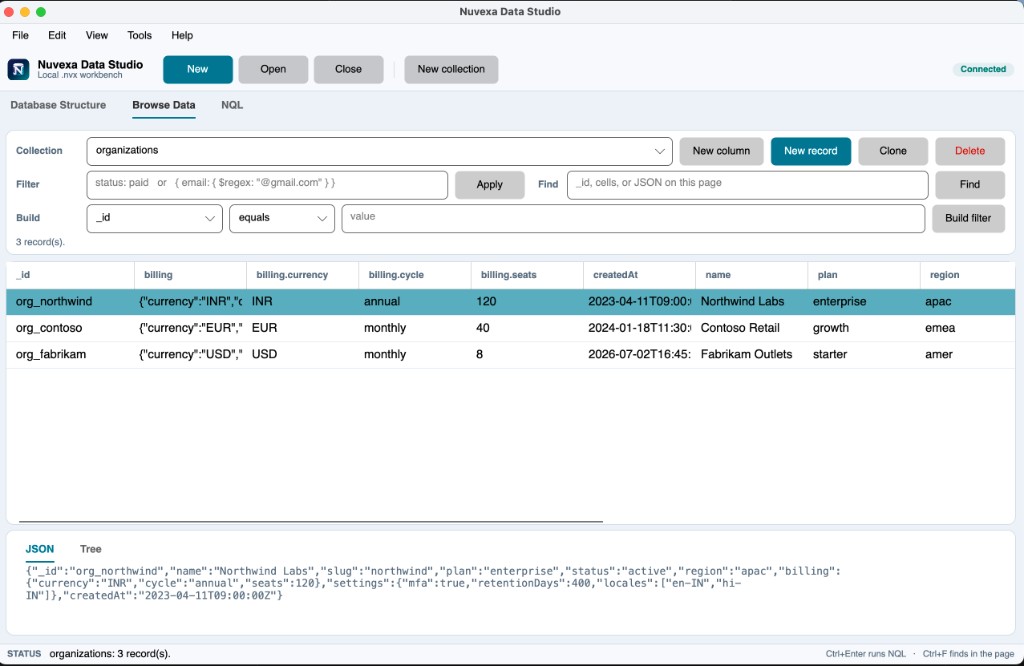

Tabs: Database Structure, Browse Data, NQL. File: New / Open / Open Recent (12 paths, never the passphrase) / Close, JSON/CSV import-export. Tools: change key, compact, backup, restore, database properties. View: system / light / dark theme, read-only. Drag a .nvx onto the window. Encrypted open prompts for the key; integrity or encryption failure is an alert.

Browse is an editable typed grid (BOOLEAN checkbox, DATETIME picker, cell autosave). That editable grid is Avalonia-only.

Local run (development):

dotnet run --project src/Nuventra.NuvexaDB.Explorer/Nuventra.NuvexaDB.Explorer.csproj -c Release

Nuventra.NuvexaDB.VisualStudio VSIX: .nvx editor factory, WPF tool-window pane, in-process NuvexaToolWindow. Browse grid cells are editable (except _id). Filter, build filter, find-in-page, JSON/Tree, 200-row pager, and NQL find / aggregate / update / delete. Same About copy (NuvexaAbout). Requires the Visual Studio SDK to pack.

Nuventra.NuvexaDB.VSCode VSIX. Custom editor talks to the engine through the `nuvexa` CLI (browse, replace, samples, explain, query, tree, open / close). Works on the same desktop OSes as the editor host (Windows x64 / ARM, macOS Apple Silicon / Intel, Linux x64 / ARM64). The CLI and native bits must match the machine RID. Browse cells are editable.

nuvexa is the headless tool: query, browse pages, explain, backup, restore, samples. VS Code is a client of this tool, not a fork of the query planner.

Items below are intentional 1.x follow-ons or documented gaps. Do not treat them as shipped in 1.0.6.

In-format candidates: more aggregate stages, richer GridFS (byte buffers in the ABI), streaming improvements, tighter $lookup planning. LINQ remains .NET-only. Physical page size stays 8192; changing it would need another version.

These stay out of the roadmap unless the product definition changes:

• A network server or multi-process writer.
• A second engine in Kotlin, Swift, Dart, or C++.
• IQueryable / a LINQ provider that breaks Native AOT.
• Automatic repair of a corrupt .nvx.

NuvexaDB is an embedded NoSQL database for desktop and mobile applications:

• One portable `.nvx` file (plaintext or AES-256-GCM).
• Collections, BSON documents, secondary indexes, and NQL (find / aggregate). On .NET, fluent filters and typed LINQ are also available.
• Fail-closed open: missing key and tamper both refuse the file. The engine does not repair a corrupt .nvx.
• One engine for every host: NuGet for .NET / MAUI, Native AOT C ABI for Java, Kotlin, Swift, Flutter, React Native, Python, Node.js, Go, and C++.
• Tools on the same engine: Nuvexa Data Studio (Windows x64 / ARM, macOS Apple Silicon / Intel, Linux x64 / ARM64), Visual Studio and VS Code / Cursor editors, and the nuvexa CLI.

It is not a client/server database. One process holds a path. Combining NuvexaDB with other libraries is a host decision and is not part of this product.
