NVSyncConflictCard

NVSyncConflictCard XAML, every kit attribute, and what each attribute does. Local vs remote conflict card. Host supplies sync.

Preview

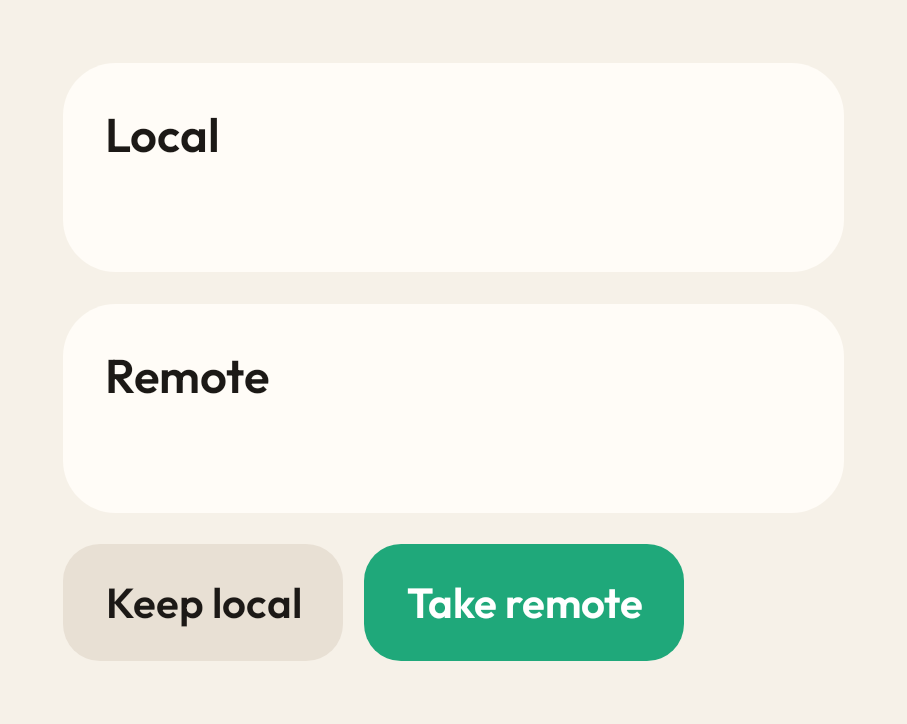

Captured from NuvyntraLabs.UIKit.Sample on a phone. This is the control as Lumina paints it.

NVSyncConflictCard captured from the UIKit sample on a phone

About

Local vs remote conflict card. Host supplies sync.

XAML with every attribute

Namespace xmlns:nv="http://nuvyntralabs.com/uikit". Kit attributes first, then inherited MAUI VisualElement / View members. Framework properties are the same on every NV* view and are not repeated in the official control reference.

xmlns:nv="http://nuvyntralabs.com/uikit"

<nv:NVSyncConflictCard
    Local="{x:Null}"
    Remote="{x:Null}"
    KeepCommand="{x:Null}"
    TakeRemoteCommand="{x:Null}"
    IsVisible="True"
    IsEnabled="True"
    Margin="0"
    HorizontalOptions="Fill"
    VerticalOptions="Fill"
    BindingContext="{Binding}" />

Attributes

custom names are Lumina API. Unmarked names match familiar MAUI / forms usage.

AttributeTypeDefaultKindExplanation
Localobject—customLocal side of a sync conflict.
Remoteobject—customRemote side of a sync conflict.
KeepCommandobject—customLumina API on NVSyncConflictCard. Type is object.
TakeRemoteCommandobject—customLumina API on NVSyncConflictCard. Type is object.

Inherited MAUI attributes

Every NV* view also inherits MAUI ContentView / VisualElement members. Those are framework properties.

AttributeTypeDefaultExplanation
IsVisiblebooltrueMAUI VisualElement. Hide the control without removing it from the tree.
IsEnabledbooltrueMAUI VisualElement. When false, the control ignores input and uses the Disabled visual state.
MarginThickness0MAUI View. Outer gap around the control. Use NVTokens.Space* for Lumina rhythm.
HorizontalOptionsLayoutOptionsFillMAUI View. Horizontal alignment in the parent (Start, Center, End, Fill).
VerticalOptionsLayoutOptionsFillMAUI View. Vertical alignment in the parent.
BindingContextobject?inheritedMAUI BindableObject. Source for {Binding …} paths on this subtree.

Typical usage

Short sample from the official control reference — not every attribute.

<nv:NVSyncConflictCard />
